HD image processing system
Using touch-type medical endoscope image processor
Intelligent operation, high-definition imaging
HDMI interface,supports computer synchronous display
Advanced Processing Algorithms: Utilizes sophisticated algorithms to enhance image quality, including contrast adjustment, noise reduction, and edge enhancement, leading to clearer and more defined images.
High-Resolution Capture: The ability to capture images at a high pixel count, providing detailed and clear visuals essential for accurate analysis.
Advanced Processing Algorithms: Utilizes sophisticated algorithms to enhance image quality, including contrast adjustment, noise reduction, and edge enhancement, leading to clearer and more defined images.

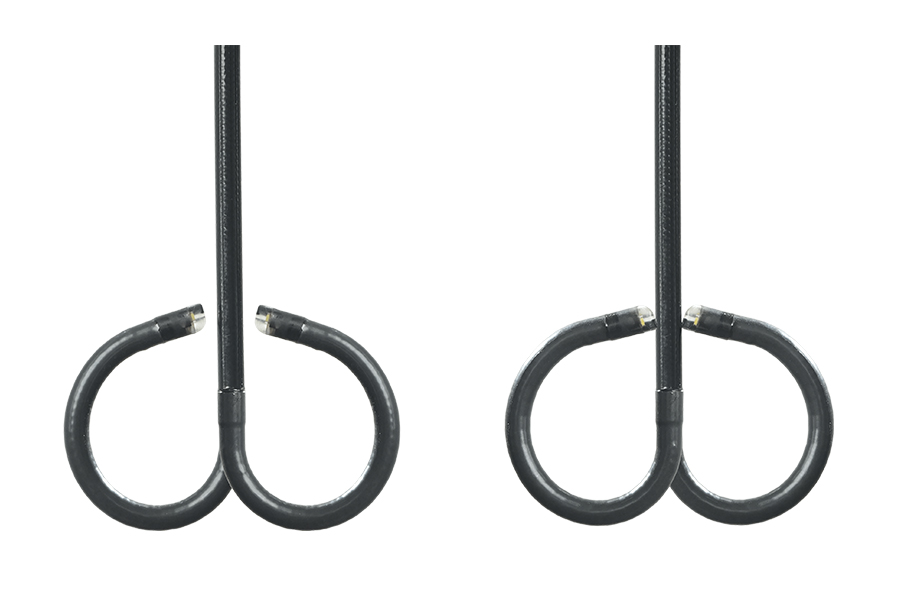

Excellent bending angle
Bending 275°up and down, small bending radius
Excellent metal snake bone structure design enhances durability
Superior Maneuverability: The exceptional bending angle enhances the ureteroscope’s ability to navigate complex urinary tract pathways, making it highly maneuverable in tight and curved spaces.
Enhanced Access to Kidneys: This flexibility is crucial for reaching and effectively visualizing the upper urinary tract, including the kidneys, improving the scope’s diagnostic and therapeutic capabilities.
Precision in Stone Management: The bending angle allows for precise positioning and maneuvering, which is particularly beneficial in procedures for kidney stone management, enabling direct access to stones in challenging locations.
120 degree large field of view
120° field of view, wide observation range
- Enhanced Diagnostic Accuracy: The wide 120-degree field of view provides a comprehensive visualization of the urinary tract, allowing clinicians to see more area in a single image, which is crucial for accurate diagnosis.
- Improved Procedure Efficiency: This extensive view enables quicker orientation and navigation within the urinary tract, leading to more efficient and effective procedures, especially important in complex cases.
- Better Detection of Pathologies: The large field of view aids in the thorough examination of the urinary tract, improving the detection and assessment of pathologies such as stones, tumors, or strictures.
Parameters
| Models | YS-U-3212 | YS-U-3212H | YS-U-2512 | YS-U-2512H |
| Working length of insertion part | 680mm±5mm | 680mm±5mm | 680mm±5mm | 680mm±5mm |
| Insertion hose (main hose)outer diameter | 2.8mm±0.1mm | 2.8mm±0.1mm | 2.6mm±0.1mm | 2.6mm±0.1mm |
| Minimum instrument hole diameter | ≥1.2mm | ≥1.2mm | ≥1.2mm | ≥1.2mm |
| Field of view | 120° | 120° | 120° | 120° |
| Viewing angle | 0° | 0° | 0° | 0° |
| Effective depth of field | 3-100mm | 3-100mm | 3-100mm | 3-100mm |
| Effective depth of field | Up/Down:275° | Up/Down:275° | Up/Down:275° | Up/Down:275° |
